To integrate a booking service with KleverKey over the Zapier app, the booking service needs to provide a couple of events with the right properties.

A booking service usually lets a user book a resource (e.g. meeting/hotel room, apartment, etc.) and usually allows the change or cancelation of the booking. The booking service needs to either provide a Zapier app with triggers or it needs to support the manual set up of Webhooks. And it would need to provide the following events (or similar):

New booking/reservation/etc.
Updated booking/reservation/etc.
Canceled booking/reservation/etc.

The following table shows the required properties for each event:

	Property type	New booking	Updated booking	Canceled booking
User email	string	Required ¹⁾	Required ¹⁾	Required ¹⁾
User first name	string	Required ¹⁾	Required ¹⁾	Required ¹⁾
User last name	string	Required ¹⁾	Required ¹⁾	Required ¹⁾
User reference ID ²⁾	string	Required	Required	Required
Booking reference ID ²⁾	string	Required	Required	Required
Resource reference ID ²⁾	string	Required	Required	Required
Booking start date	ISO 8601 string	Required	Required	Optional
Booking end date	ISO 8601 string	Required	Required	Optional

¹⁾ If the user email and first/last name is missing it has be retrieved with an additional action

²⁾ Go to the Zapier app documentation for more information on IDs

If the properties are not provided like that (e.g. first- and last name in one property or the date strings are formatted differently) they need to be put in the right form with an additional action.

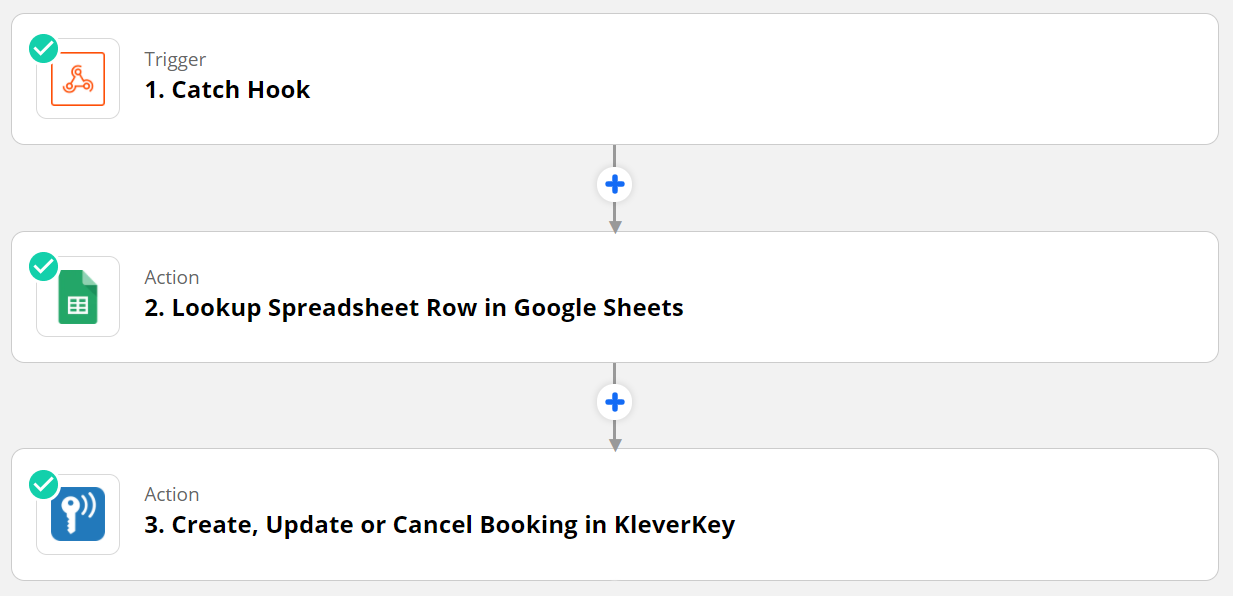

Example Zap

This example receives a booking event, looks up data in a Google spreadsheet and sends the booking to KleverKey.

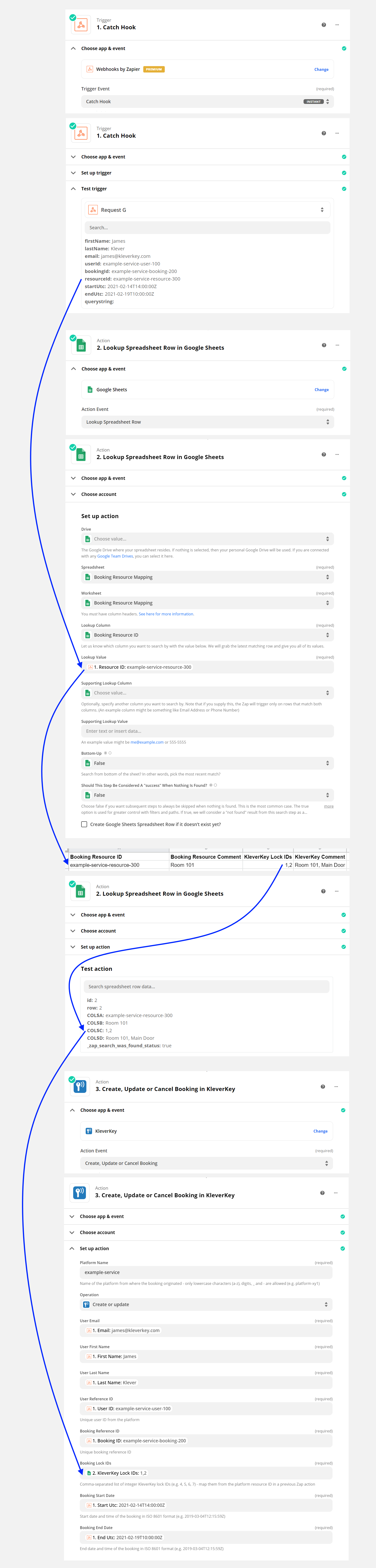

Below you see how the Webhook trigger, the spreadsheet lookup and the KleverKey action have been configured. Especially you see how the resource ID from the event gets mapped to two KleverKey lock IDs with the lookup spreadsheet (example spreadsheet). To get the integer ID of a lock go to the lock details page and copy the ID from the URL (e.g. https://portal.kleverkey.com/organization/locks/1102305441). The other properties get handed directly from the Webhook trigger to the KleverKey action. The Zap would look similar if the trigger would be a specific Zapier app. The properties would most likely be named differently but the two actions would be set up the same.


Example Zap
