The following article shows the different LED codes of the KleverKey Gateway.
|
Blinks 1 x BLUE |
WiFi credentials missing No locks are linked |
| Blinks 2 x BLUE |
WiFi credentials missing |
| Blinks 1 x YELLOW | WiFi credentials set WiFi disconnected |
| Blinks 1 x PINK | WiFi credentials set WiFi connected |
| Blinks 1 x GREEN | WiFi credentials set KleverKey cloud connected |
| Blinks n x GREEN | WiFi credentials set KleverKey cloud connected n-1 locks connected to gateway |
| Constant GREEN | Boot up error, please unplug gateway and plug it back in |

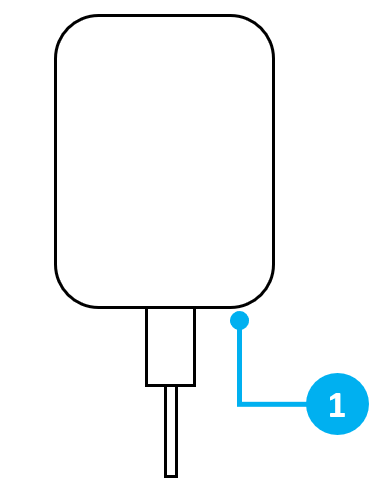

1) Status LED of Gateway
