Assembly Instructions KleverKey Reader KK2132/34 and Security Module

The aim of this article is to show how to connect the KleverKey Reader KK2132/34 with the Security Modul (optionally).

Intro

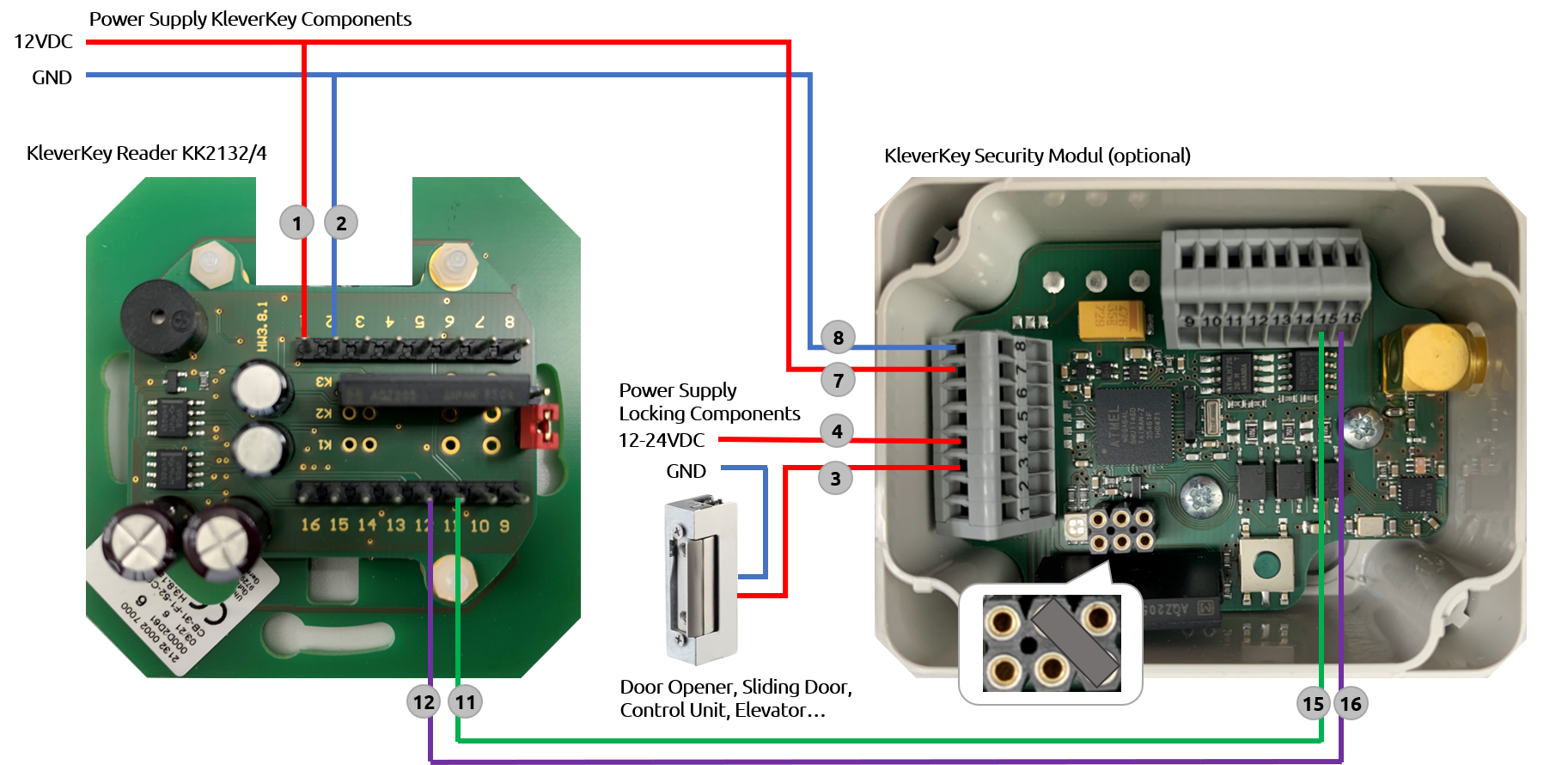

The reader must be installed outside the door and connected with four wires to the security module. The communication between the reader and the security module is encrypted and secure.

The security module has a potential-free relay output (3 + 4) and various electric loads like motor, door opener or a digital input of a control unit could be connected.

Pairing

To pair the reader with the security module, you must follow the steps below:

1. Connect the KleverKey reader and the security module as depicted above
2. Mount the pairing connector like shown:
3. Activate the reader with a valid permission (you can use your smartcard or KleverKey app)
4. The security module will turn on the relay output after a short delay
5. Dismount the pairing connector
6. Turn off power to restart the reader and security module
