This article describes common errors when setting up and operating a gateway. The gateway uses the LED to describe what the problem is.
How does your gateway LED light up?
Where is the reset button located?
LED blinks 1x blue
Meaning: WiFi credentials are missing, no locks are linked.
Possible cause: The gateway has not yet been configured
Add gateway on Android
- Log in to the KleverKey App
- Select the three stripes in the upper left corner and tap Hardware
- Switch to the Gateway tab and tap the plus in the lower right corner
- Enter the WiFi network name (SSID) and password of the WiFi. When the LED on your gateway flashes green, it is successfully connected to your WiFi.
Add gateway on IOS
- Log in to the KleverKey App
- Select Gateway tab
- Tap on the plus sign in the upper right corner and select the correct gateway (compare the gateway ID with the one on the gateway).
- Enter the WiFi network name (SSID) and password of the WiFi. When the LED on your gateway flashes green, it is successfully connected to your WiFi.
If the LED does not flash green, the gateway must be reset and reconfigured via the menu.
LED blinks n x blue
Meaning: WiFi credentials are missing, but n-1 locks are linked.
Possible cause 1: The reset button was pressed
- Log in to the KleverKey portal
- "Open "Hardware" -> "Gateways
- Click on the gateway to be removed

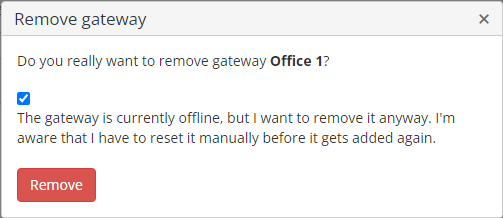

- Remove gateway with the check mark "The gateway is currently offline..." set
- The gateway should now flash 1x blue again
- Follow the section LED flashes 1x blue
Possible cause 2: The previous connected WiFi has been replaced by a new one
- Reset your Gateway (10 second press)
- Follow the solution for possible cause 1
LED blinks yellow
Meaning: WiFi data set, but no connection to WiFi
Possible cause 1: The network data was not entered correctly when configuring the gateway
- Under SSID the network name must be entered and in the second field the password of the network. Reset the gateway to enter the data again. To do this, you must press the reset button for 5 seconds.
Possible cause 2: The WiFi is not strong enough to be received at the mounting location of the gateway
- Move WiFi router closer to gateway
- Install WiFi amplifier between gateway and router
- Move gateway closer to WiFi (in doing so, do not move it too far from the connected locks, otherwise this connection will fail)
Possible cause 3: It is not a pure 2.4 GHz network but a dual network 2.4 GHz/5 GHz
The gateway cannot connect to some WiFi routers that provide a 2.4 GHz / 5 GHz WiFi network with the same network names for both frequencies.
- Use different network names for the 2.4 GHz and 5 GHz network
LED blinks pink
Meaning: The gateway is connected to the WiFi but can't communicate with the Cloud.
-
Make sure the ports 8883 (MQTT), 123 (SNTP) und 443 (TCP) are open in the firewall.
Constant green
Meaning: Error during startup
- Unplug the gateway and plug it in again
LED not lit
Possible cause 1: The power supply is not plugged in correctly
- Plug the gateway in and out again.
Possible cause 2: The included power supply unit was not used
- Put the gateway into operation with the included power supply unit
Possible cause 3: The socket into which the power supply is plugged does not work
- Plug in another device to ensure the function of the outlet
Possible cause 4: LED is defective
- Open KleverKey App and try to configure the gateway anyway.

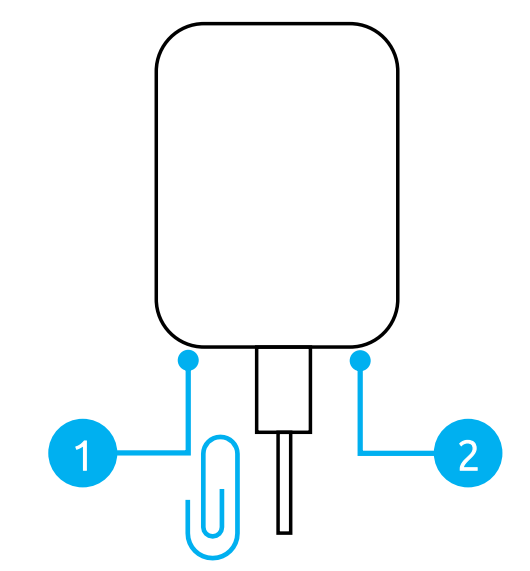

Where is the reset button located?
(1) Reset button (can be pressed e.g. with paper clip)
(2) Gateway status LED
Reset button pressed for 5 seconds: Reset WiFi settings
Reset button pressed for 10 seconds: Reset to factory settings
(More information about the reset)
