Operation KleverKey door handle KK2172, fitting KK2174

This article describes how the KleverKey door handle KK2172 or door fitting KK2174 can be operated by a user. As long as the door handle/fitting is not used, it is in a sleep mode.

With smartcard or keychain

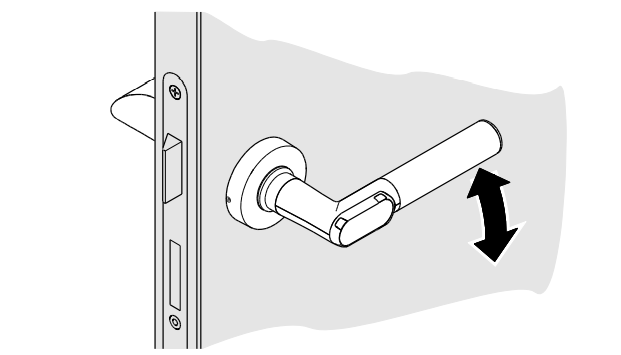

To be able to open the lock with a smartcard or key chain, it must be woken up from sleep mode. This usually happens automatically when a card is held against the black cover of the handle. If this does not work automatically, the handle can be woken up by pressing it down a few times until the LEDs light up.

With KleverKey App

Beforehand, the KleverKey app must be downloaded from the App Store or Play Store and a login must be performed. The administrator of the lock must also send an authorization, which then appears in the app.

To open the lock, the KleverKey app must be started. The authorization should then appear with a dark blue logo. If the KleverKey logo is colored light blue, you need to get closer to the lock or turn on Bluetooth.

By pressing on the authorization, the lock is engaged. After that, the handle can be pressed down to open the door.

Office Mode

The handle can also be opened and closed in office mode. The handle remains engaged (or disengaged) until you authorize yourself again.

To be able to use the office mode, you must have received the appropriate authorization from the administrator.

• Smartcard: Hold the card against the cylinder for longer than 5 seconds until the LED flashes again.
• App: Press authorization for longer than 1 sec.

Batterywarning

A low battery is signaled to the user with a flashing red LED and a beep code (5x short):

In this case, the administrator of the lock should be notified so that the battery can be changed in time.

.
